Product Description

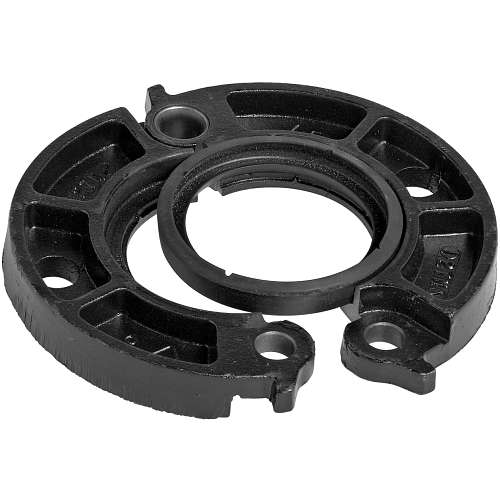

Style 741
Style 741 Vic-Flange
®
adapter is designed for directly
incorporating flanged components with ANSI CL. 125 or
CL. 150/PN10 and PN16 or Australian Standard Table
E bolt hole patterns into a grooved pipe system. Sizes
2 – 12”/50 – 300 mm are hinged for easy handling
with integral end tabs which facilitate assembly. Sizes
14 – 24”/350 – 600 mm are cast in four (4) identical
segments which are interconnected as assembly is
completed.
The design incorporates small teeth inside the key
shoulder I.D. to prevent rotation (excluding 159 mm size).
These teeth should be removed when Vic-Flange adapter
is utilized with a Victaulic Series 700 grooved end
butterfly valve, Schedule 5 pipe or plastic pipe.
Vic-Flange adapter Style 741 is not recommended for
use with Victaulic Series 709 butterfly valves (contact
Victaulic for recommendations). They may only be used
on one side of Victaulic Series 700 butterfly valve, sizes
2 – 4”/50 – 100 mm fitted with standard or lever-lock
handles. Vic-Flange adapter must be assembled so it
does not interfere with handle operation.
Style 743
Vic-Flange Style 743 flange-to-groove adapter permits
direct connection of ANSI Class 300 flanged components
into a grooved system. The two-piece, hinged housing
engages into the pipe groove and bolts directly to any
standard flanged component. The conventional bolt hole
pattern allows for easy, fast assembly. Style 743 rotates
360º for proper alignment of bolt holes before tightening.
Vic-Flange gaskets utilize the Victaulic pressureresponsive design, sealing on the pipe end and directly
to the opposing flange face. No standard flange gasket is
required.
Style 743 is designed to mate with raised-face flanges,
but can be used with flat-face flanges by removing the
raised projections on the outside face of the flange.
