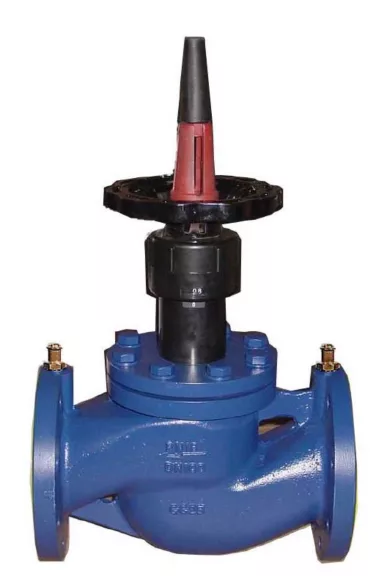

Description

PT. Cahaya Kalimas Utama Authorized Distributor of Honeywell

Features
• Balancing through stroke limitation with digital pre-setting and
visible pre-setting indicator
• Equipped with 2 pressure test cocks for differential pressure
measurement
• Non rising spindle with EPDM and EPDM O-ring sealing
• Pre-setting isn’t altered when handwheel is turned
• Regulation screw protected by protection cap
• PTFE seat sealing
• Valve cartridge and spindle made of cast steel
• Available in dimensions up to DN400

Specifications
Flange
BS4504 PN16 or ANSI B16.1 Class 125.
Other flange types are available.
Operating
temperature
-10 to 120 °C (14 to 248 °F)
Nominal pressure 16 Bar or 125 Psi
kvs-values see table below and flow
