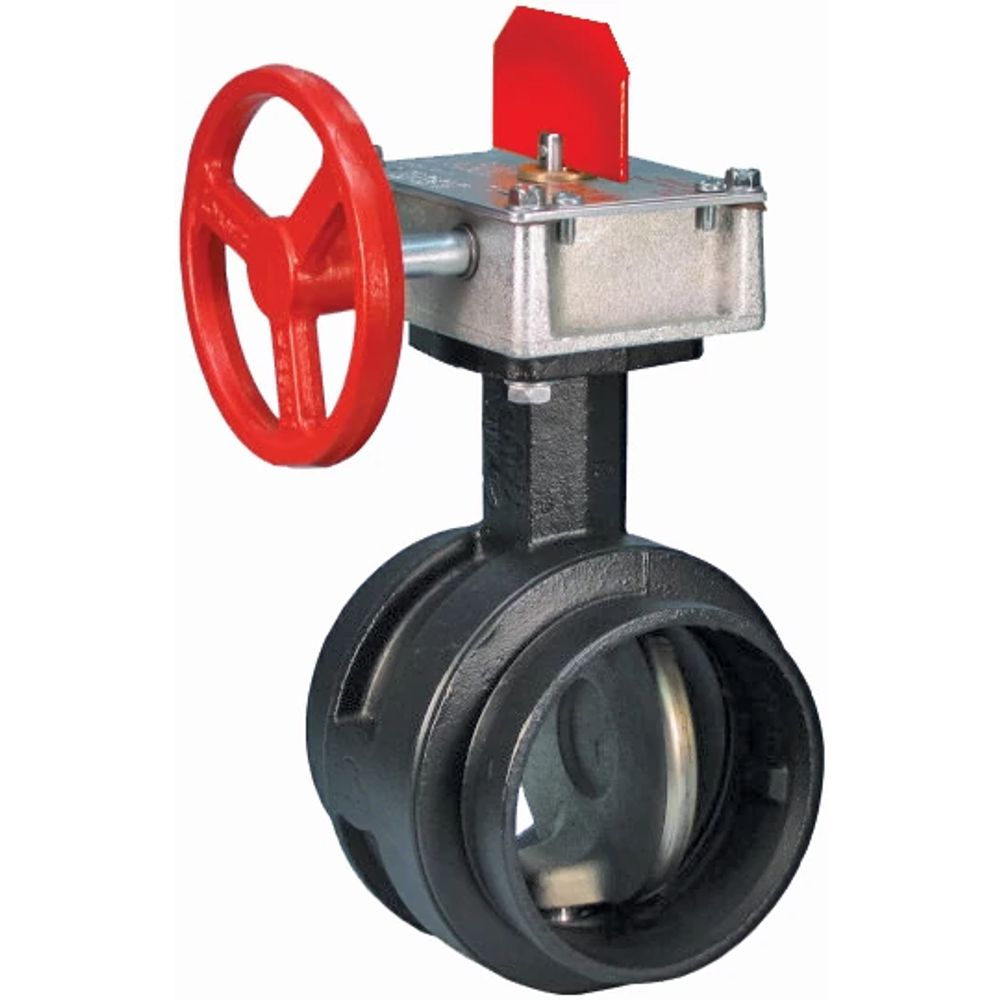

Victaulic FireLock Butterfly Valve Series 705

Victaulic FireLock Butterfly Valve Series 705

Body:Ductile iron conforming to ASTM A-536, grade 65-45-12
End Face, 2 – 6″/50 – 150 mm:Ductile iron conforming to ASTM A-536, grade 65-45-12
Seal Retainer, 8 – 12″/200 – 300 mm:Ductile iron conforming to ASTM A-536, grade 65-45-12
Coating:Black alkyd enamel
Disc:Ductile iron conforming to ASTM A-536, grade 65-45-12, with electroless nickel coating conforming to ASTM B-733
Seat:
• Grade “T3” Nitrile
Stems: 416 stainless steel conforming to ASTM A-582
Stem Seal Cartridge:C36000 brass
Bearings:Stainless Steel with TFE lining
Stem Seals:Nitrile
Stem Retaining Ring:Carbon steel
Actuator:
• 2 – 8″/50 – 200mm: Brass or bronze traveling nut on a steel lead screw, in a ductile iron housing
• 10 – 12″/250 – 300mm: Steel worm and cast iron quadrant gear, in a cast iron housing

Rp10.852.000

Quantity
Category:
Pesan via WhatsApp

Description

PT. Cahaya Kalimas Utama Authorized Distributor of Victaulic

The Series 705 Butterfly Valve features a weatherproof actuator housing Approved for
indoor or outdoor use, a ductile iron body and disc with Nitrile seats. Designed for fire
protection services only. Victaulic FireLock Series 705 Butterfly Valve is cULus Listed,
LPCB Listed, FM and VdS Approved for 300 psi/2068 kPa service. Contact Victaulic for
details of agency approvals.
