Description

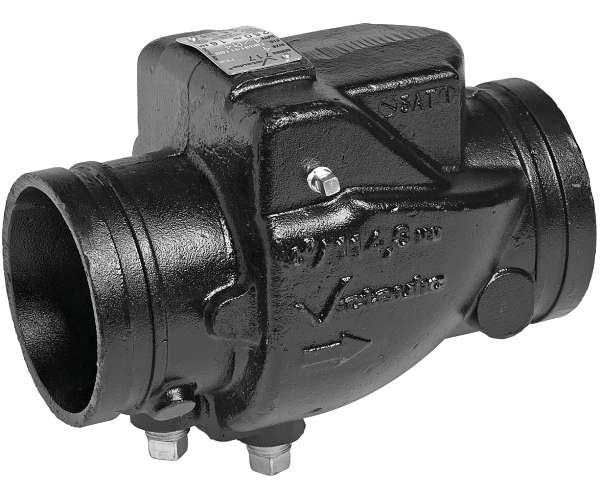

PT. Cahaya Kalimas Utama Authorized Distributor of Victaulic

Available Sizes
• 2 – 3″/DN50 – DN80 (Series 717H)
• 2 ½ – 12″/73 mm – DN300 (Series 717)
Pipe Material
• Carbon Steel, Schedule 10, Schedule 40. For use with alternative materials, please contact Victaulic.
Maximum Working Pressure
• Up to 365 psi/2517 kPa/25 bar
• Working pressure dependent on pipe size, valve size, and approval requirements.
Application
• Designed for use in fire protection systems.
• Prevents backflow.
• Single-disc mechanism incorporates a spring-assisted feature for non-slamming operation.
• Can be installed either vertically (flow upwards only) or horizontally.
• Valve body cast with arrow indicator to assist with proper valve orientation.
• Optional upstream and downstream pressure taps included on select sizes. See Section 3.0.
• Provided with grooved ends.
• Rated for ambient temperature use in fire protection systems.
Available End Connections
• Victaulic Original Groove System (OGS) groove
